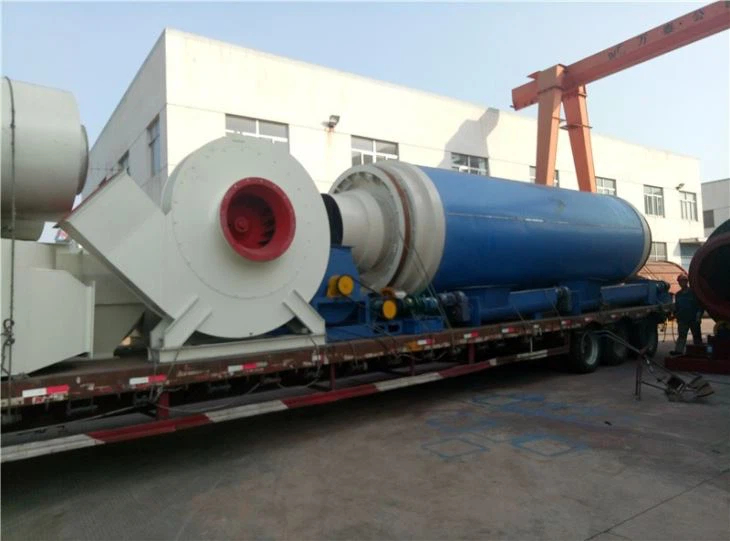

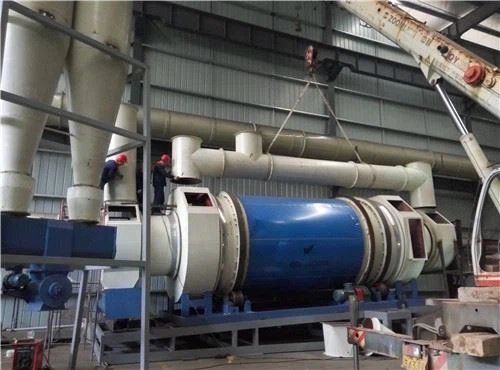

Paste Material Dryer

Two different drying processes for paste materials (such as sludge)

According to the final disposal purpose of materials, the materials can be semi dried. Semi drying refers to the direct discharge of water after drying to a certain extent, which is convenient for the next process (such as direct incineration, and the heat energy generated by sludge incineration can be sent to the dryer). Full drying process refers to a part of dry materials returned to the feed port, mixed with wet materials, and then sent to the dryer, and the obtained materials are fully dry.

Dryer Structure

Paste material dryer is a set of hollow spiral turntable, the turntable is connected by a hollow shaft, the shaft is fixed on the disk at both ends through the bearing, and is connected with the steam through the rotary joint. The driving device of the dryer is installed at one end of the stator, which is composed of motor, reducer, coupling, etc. The material to be dried flows in from one end of the dryer, flows through the gap between the rotary table and the stator, reaches the other end, and flows out through the discharge valve at the bottom. After the surface contact heat transfer of the rotary table, the moisture contained in the material is evaporated, and a scraper is installed between the rotary tables to prevent caking and adhesion on the discs. The water vapor released by the material is gathered on the dome and discharged through the exhaust pipe.

Application scope of paste material dryer

The paste material dryer of Jingjiang Wantai Machinery Manufacturing Co., Ltd. is a kind of high-efficiency, energy-saving and high stability heating and drying equipment, which has applied for patent, patent No.: ZL200520068863.9 。 It is ideal for converting viscous materials. It can be used for drying a variety of materials, such as pet food, chemical by-products, biological materials, aquaculture, sludge treatment, animal feed, fish meal processing, wine making by-products, etc.

Characteristics of paste material dryer

1. Through indirect heat transfer, the heat utilization rate is as high as 95%.

2. Low temperature, low oxygen operation, to prevent materials in the drying of spontaneous combustion or explosion.

3. Both sides of the rotary table can conduct heat on both sides, increasing the heat transfer area and reducing the equipment volume and land occupation.

4. The air demand is low and the cost of tail gas treatment is saved.

5. The rotating parts move slowly and wear is very small.

6. The structure is firm and durable.

7. The design is very compact, but the heat transfer area is large, and the equipment occupies the smallest space compared with other dryers.

Main technical parameters
