Potato Processing Waste Dryer Technical Principles
Wantai Potato Processing Waste Dryer is a new thin layer drying technology. Under normal pressure, 95-97 ℃ hot water is used as a thermal source. The transparent polyester film is covered on the surface of the hot water. The wet material is sprayed on the polyester film, the heat is passed to wet material through the polyester film, and the moisture of the material evaporation is eliminated by the exhaust fan, and the separation of the material from the polyester film is separated to the end point of dryness.
According to the study, when the aquatic material is placed on the surface of the polyester film, the part between the water in the material and the polyester film forms a channel that allows infrared energy to pass. The thermal energy is transmitted to the material by conduction and radiation at the same time, and the material is heated and the water is evaporated. Due to evaporation and exhaust cooling, the temperature of the material rarely exceeds 75 ° C. After the material is dried, the infrared channel will be closed. The heat can only be transmitted in a transmission. Since the polyester film is a poor conductor of heat, dry samples can avoid excessive heating.
Potato Processing Waste Dryer has advantages such as simple equipment, low cost, and energy conservation. As a new thin layer drying technology, it has attracted market interest and attention. Compared with drum drying, refraction window drying can significantly reduce the drying temperature, and is applicable to the drying of paste materials with strong heat sensitivity that cannot be dried by spray and need to be dried at a lower temperature, such as drugs such as potassium ascorbate or magnesium ascorbate, nutrients such as spirulina or blue-green algae, and egg products such as protein, egg yolk, and whole egg.
Potato Processing Waste Dryer Models & Specifications：

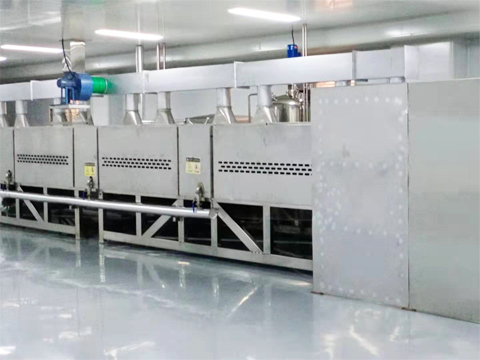

The WTFD Potato Processing Waste Dryer is mainly composed of feeding mechanism, outlet mechanism, special conveyor belt, sink, heating water tank, circulating water pump, feed metering pump, air atomized nozzle feeding device, rack, box, etc.
The refractive window dryer mainly has the following specifications and parameters:
Serial Number | model | Installed power(Kw) | Circulating water volume（L） | Configure heat(Kcal) | Overall dimensions (length × wide × Height (mm) | notes |
1 | WTFD-1650-4880 | 15 | 750 | 15×104 | 8690×2200× 2700 | Compressed air, Pressure 0.7kg/cm3
|
2 | WTFD-1650-9760 | 19.2 | 1500 | 30×104 | 13930×2200× 2700 |
3 | WTFD-1650-14640 | 26.7 | 2250 | 45×104 | 19170×2200× 2700 |
4 | WTFD-1650-19520 | 33 | 3000 | 60×104 | 24410×2200× 2700 |
5 | WTFD-1650-24400 | 45 | 3750 | 75×104 | 29650×2200× 2700 |
