1、 Overview of Tremella Polysaccharides
Tremella polysaccharide is an acidic heteropolysaccharide obtained from the fruiting body of Tremella fuciformis, and its main chain structure is composed of α- (1 → 3) mannan linked by Glycosidic bond, the branch chain is composed of Glucuronic acid and xylose. The acidic heteropolysaccharides present in the deep fermentation spores of Tremella fuciformis have a main chain structure similar to the above, but differ only on the branched chain.
2、Overview of Tremella Polysaccharide Refractive window dryer
Tremella Polysaccharide Refractive window dryer uses 95 ℃ hot water as the drying medium to perform Refractive window drying on liquid paste materials. The moisture content is dried from 90% to 5%, and the drying time is only about 5 minutes. However, conventional heat pump drying, hot air drying, and freeze-drying require more than 12 hours or even longer. Therefore, when the liquid paste material is dried, it can maintain 94% vitamin C and natural color, nutrition, flavor, and aroma. The quality of the products it produces is comparable to that of freeze-dried products, but the energy consumption is less than one-tenth of that of freeze-dried products.
3、Tremella Polysaccharide Refractive window dryer Drying conditions:
The factors that restrict dryness on Tremella Polysaccharide Refractive window dryer include air inlet temperature, exhaust temperature, air humidity, dry air volume, material liquid treatment, water evaporation, dry room diameter, dry room volume, particle diameter.
When designing the above factors, according to the characteristics of dry materials, the particle size and processing of the required product are determined, especially the diameter and volume of the dry chamber. Because they are indispensable factors, it is not possible to make too many adjustments based on this. Therefore, before the design of the Refractive window dryer, it is very necessary to select appropriate drying conditions on a small test machine.
4、Tremella Polysaccharide Refractive window dryer Models & Specifications:

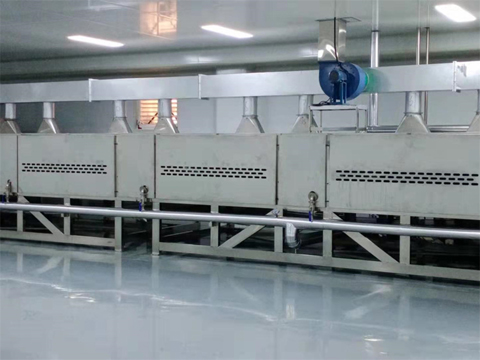

The WTFD Tremella Polysaccharide Refractive window dryer is mainly composed of feeding mechanism, outlet mechanism, special conveyor belt, sink, heating water tank, circulating water pump, feed metering pump, air atomized nozzle feeding device, rack, box, etc.
The refractive window dryer mainly has the following specifications and parameters:
Serial Number | model | Installed power(Kw) | Circulating water volume(L) | Configure heat(Kcal) | Overall dimensions (length × wide × Height (mm) | notes |
1 | WTFD-1650-4880 | 15 | 750 | 15×104 | 8690×2200× 2700 | Compressed air, Pressure 0.7kg/cm3 |
2 | WTFD-1650-9760 | 19.2 | 1500 | 30×104 | 13930×2200× 2700 | |
3 | WTFD-1650-14640 | 26.7 | 2250 | 45×104 | 19170×2200× 2700 | |
4 | WTFD-1650-19520 | 33 | 3000 | 60×104 | 24410×2200× 2700 | |
5 | WTFD-1650-24400 | 45 | 3750 | 75×104 | 29650×2200× 2700 |
