Cocoa Tea Powder Refractive window dryer

1、 Overview of Cocoa Tea Powder

The cocoa fat in the cocoa tea powder is natural and contains rich stearic acid, which can reduce blood cholesterol; Cocoa solids can also help skin, promote body metabolism, help digestion, and restore gastrointestinal function. Cocoa solids contains Phytochemistry components of flavanols, which are beneficial to heart disease, hypertension and diabetes.

2、Cocoa Tea Powder Refractive window dryer system features：

1) Low energy consumption;

2) For dry liquid materials, there is no need to pre-concentrated or processing of gum for raw materials, etc.;

3) Continuous operation and production

4) Low water consumption;

5) Easy to clean;

6) Simple control and easy operation;

7) Due to the use of flexible drying and high product quality, it can maintain the original color and fragrance;

8) Operations under low temperature and normal pressure conditions, greatly reduces the oxidation of the product;

9) The product has a high loosening dump density, which reduces packaging and transportation costs.

3、Cocoa Tea Powder Refractive window dryer Technical Principles ：

Wantai Cocoa Tea Powder Refractive window dryer is a new thin layer drying technology. Under normal pressure, 95-97 ℃ hot water is used as a thermal source. The transparent polyester film is covered on the surface of the hot water. The wet material is sprayed on the polyester film, the heat is passed to wet material through the polyester film, and the moisture of the material evaporation is eliminated by the exhaust fan, and the separation of the material from the polyester film is separated to the end point of dryness.

According to the study, when the aquatic material is placed on the surface of the polyester film, the part between the water in the material and the polyester film forms a channel that allows infrared energy to pass. The thermal energy is transmitted to the material by conduction and radiation at the same time, and the material is heated and the water is evaporated. Due to evaporation and exhaust cooling, the temperature of the material rarely exceeds 75 ° C. After the material is dried, the infrared channel will be closed. The heat can only be transmitted in a transmission. Since the polyester film is a poor conductor of heat, dry samples can avoid excessive heating.

4、Cocoa Tea Powder Refractive window dryer Drying conditions：

The factors that restrict dryness on Cocoa Tea Powder Refractive window dryer include air inlet temperature, exhaust temperature, air humidity, dry air volume, material liquid treatment, water evaporation, dry room diameter, dry room volume, particle diameter.

When designing the above factors, according to the characteristics of dry materials, the particle size and processing of the required product are determined, especially the diameter and volume of the dry chamber. Because they are indispensable factors, it is not possible to make too many adjustments based on this. Therefore, before the design of the spray dryer, it is very necessary to select appropriate drying conditions on a small test machine.

5、Cocoa Tea Powder Refractive window dryer Models & Specifications：

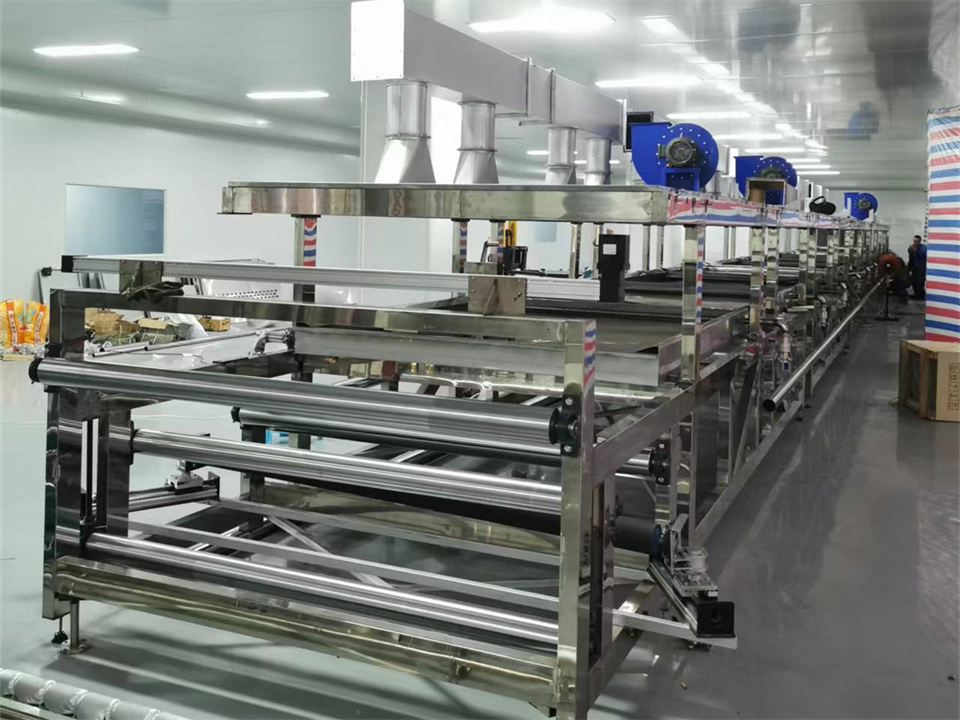

The WTFD Cocoa Tea Powder Refractive window dryer is mainly composed of feeding mechanism, outlet mechanism, special conveyor belt, sink, heating water tank, circulating water pump, feed metering pump, air atomized nozzle feeding device, rack, box, etc.

The refractive window dryer mainly has the following specifications and parameters:
