Coffee Powder Refractive window dryer

1、 Overview of coffee powder

In our daily lives, coffee powder is a common beverage, and many people drink a cup of coffee at the end of their lunch break while staying up late. Coffee powder contains certain nutrients. The nicotine acid in coffee powder contains vitamin B, and the content of roasted coffee powder is higher. And there are free fatty acids, caffeine, tannic acid, etc.

2、Coffee Powder Refractive window dryer Introduction

Wantai Coffee Powder Refractive window dryer uses 95 ℃ hot water as the drying medium to flash dry liquid paste materials. The moisture content is from 90% to 5%, and the drying time is only about 5 minutes, while conventional heat pump drying, hot air drying, and freeze drying take more than 12 hours, or even longer. Therefore, when the liquid paste material is dried, it can maintain 94% vitamin C and natural color, nutrition, flavor, and aroma. The quality of the products it produces is comparable to that of freeze-dried products, but the energy consumption is less than one-tenth of that of freeze-dried products.

3、Coffee Powder Refractive window dryer Drying conditions：

The factors that restrict dryness on Coffee Powder Refractive window dryer include air inlet temperature, exhaust temperature, air humidity, dry air volume, material liquid treatment, water evaporation, dry room diameter, dry room volume, particle diameter.

When designing the above factors, according to the characteristics of dry materials, the particle size and processing of the required product are determined, especially the diameter and volume of the dry chamber. Because they are indispensable factors, it is not possible to make too many adjustments based on this. Therefore, before the design of the spray dryer, it is very necessary to select appropriate drying conditions on a small test machine.

4、Coffee Powder Refractive window dryer Application advantages：

Suitable for paste, mud-shaped liquid material, especially the drying effect of thermal material.

1. Compact equipment, small volume, high production efficiency, and continuous production.

2. Drying strength, low energy consumption, and high thermal efficiency.

3. Fast drying speed, short material staying time, and high drying quality.

4. Gentle and fast drying process, retain the original product effective ingredients, and have the same quality effect as frozen and dry. The drying speed and cost are only one tenth.

5、Coffee Powder Refractive window dryer Models & Specifications：

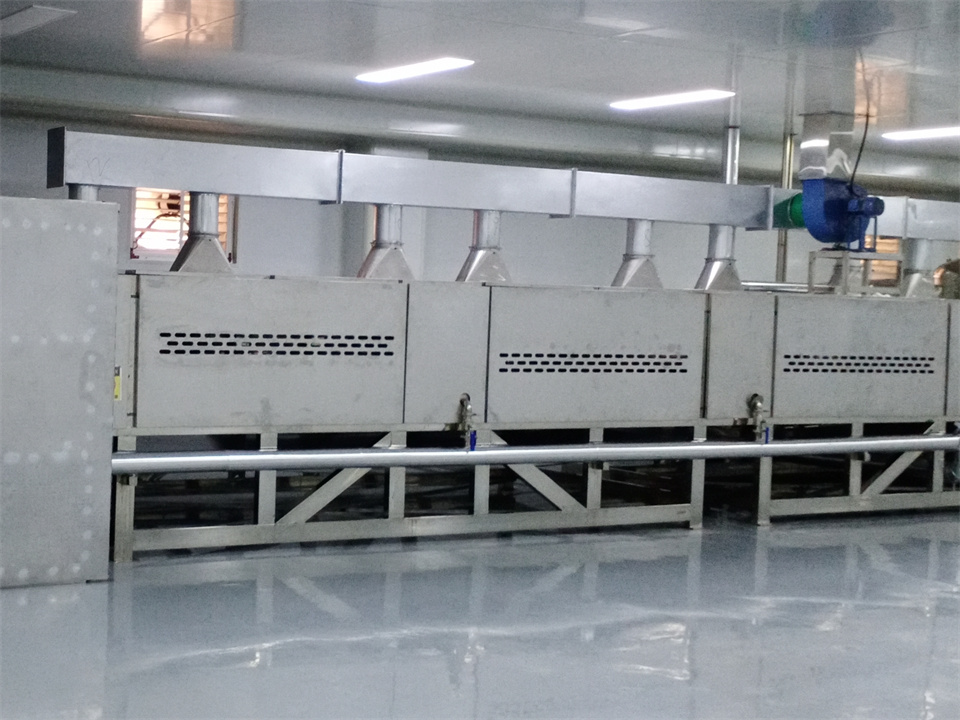

The WTFD Coffee Powder Refractive window dryer is mainly composed of feeding mechanism, outlet mechanism, special conveyor belt, sink, heating water tank, circulating water pump, feed metering pump, air atomized nozzle feeding device, rack, box, etc.

The refractive window dryer mainly has the following specifications and parameters:
