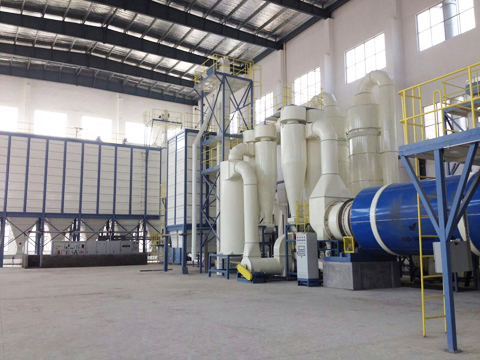

1、 Overview of Distiller's grains dryer
The Wantai Distiller's grains dryer is designed to quickly process and dry alcohol residue with a moisture content of around 85% to a moisture content of around 10%, based on the physical characteristics of alcohol residue. The drying effect of the equipment is good, with no loss of nutrients, and the effect is better than previous single stage dryers, saving energy and reducing consumption. At present, this equipment has been put into use in multiple domestic brewing and feed processing enterprises, and has created considerable economic benefits for customers.
2、 Composition of Distiller's grains dryer
The system mainly includes two parts: a dryer and an electric motor. It is mainly composed of mortar mixer, dry powder mortar mixer, putty powder mixer, horizontal mixer, screw belt mixer, drum crushing dryer, combustion furnace, feed spiral, discharge spiral, conveying pipeline, dust collector, air shutter, induced draft fan, control cabinet, etc.
3、 Characteristics of Distiller's grains dryer
1. The precipitation amplitude is large, and the alcohol residue with 80% moisture content can be dried to below 13% moisture content in one go.
2. Large processing capacity, with a single set of equipment capable of handling 80-500 tons of alcohol residue per day.
3. Strong adaptability, in addition to being used for drying alcohol residue, it can also be used for various materials with poor dispersion and large precipitation, such as distiller's grains and compound fertilizers. The design and manufacturing of relevant components have considered the mechanical performance requirements for long-term high-temperature operation, which can achieve long-term continuous drying operation under full load.
4. The Wantai Distiller's grains dryer uses a rotary drum dryer as the main unit of the drying system, which has a simple structure, fewer faults, low maintenance costs, and large production capacity, ensuring long-term continuous operation.
5. A specialized board structure design is adopted in the drying drum to ensure the drying effect of alcohol residue.
6. It adopts a unique sealing device and is paired with a good insulation system.
7. The rotary drum dryer adopts a continuously variable transmission, which can adjust the rotational speed of the rotary drum according to the different moisture content of the material to achieve the drying effect. The drum is driven by a cast steel machined gear ring, which is stable and reliable.
8. The dryer drum is equipped with a powerful disperser, which can effectively solve the problem of adhesion and agglomeration of slag materials during the drying process.
9. After the drying section, it can be combined with subsequent sections such as crushing, mixing, granulation, and packaging to produce alcohol residue pellet feed products.
