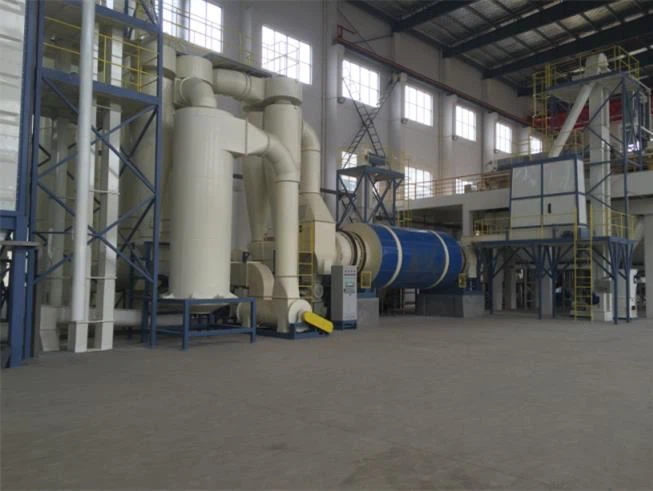

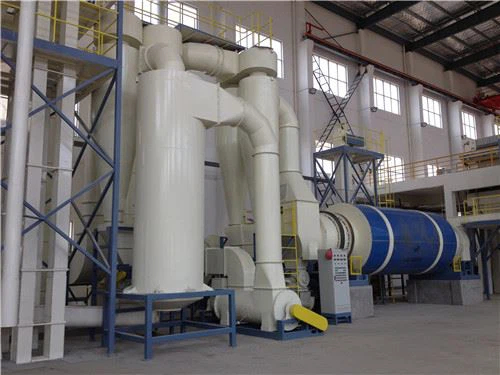

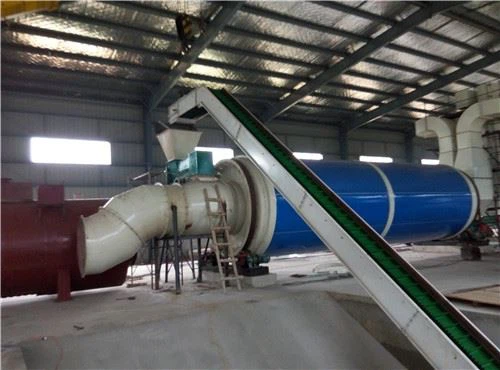

Overview of cassava residue dryer Cassava Slag Dryer
Potato residues (cassava, sweet potato, and potato residues) are by-products of starch plants, alcohol plants and other manufacturers, with much water and high viscosity. In the traditional drying process, adhesion, caking and blockage are likely to occur, as a result, the drying equipment cannot be produced normally, and the user interests are damaged. The "Special potato residue dryer" designed by WAN TAI can dry all kinds of potato residues with high water content to less than 12% at a time.
Structure principle of cassava residue dryer
The cassava residue dryer is mainly composed of heat source, feeder, rotary cylinder, feeding machine, draft fan, discharger and power distribution cabinet.
After the dehydrated wet bean residues enter the cassava residue dryer, under the rotation of the evenly distributed shoveling plate in the cylinder, it is evenly dispersed and fully in contact with the hot air, which speeds up the heat and mass transfer of drying. After drying, the potato residues, under the action of the inclined shoveling plate and heat medium, are transported to another star-shaped discharge valve of the dryer for the dried products. In the process of equipment design, WAN TAI, taking into full consideration of the characteristics of potato residues with large water content and high viscosity, introduced a series of original technologies and processes to ensure best drying effects.
Characteristics of cassava residue dryer
1. The dryer, with high mechanization degree and large production capacity, can be continuously operated.
2. The structure is excellent and simple, and the material operates smoothly and easily through the cylinder resistance.
3. There are fewer failures, with lower maintenance costs and lower power consumption.
4. The drying uniformity of the product is excellent.
5. The drying production line of cassava residues adopts a unique scattering device to ensure the drying effect.
6. The use of unique sealing device with a good insulation system effectively reduces the coal consumption of the drying system.
7. The overall system, with good sealing performance and operating environment, is provided with a complete dust removal device, and there is no dust spillover.
8. The entire drying system is under electric centralized control, and the hot air temperature is automatically adjusted, with high automation and convenient operation.
9. After drying, subsequent sections such as crushing, mixing, granulation, and packing can be performed to produce finished granulated feed of potato residues.
