1、 Introduction to Ginger Powder
Ginger powder is a kind of powder, and its main material is ginger. Its functions include warmth, excitement, sweating, antiemesis, detoxification, lung warming and cough relieving, especially for fish and crab poisons, Pinellia ternata, Arisaema heterophyllum and other drug poisons. Suitable for external cold, headache, phlegm, cough, stomach cold and vomiting; After being attacked by ice, snow, water, or cold, drinking ginger soup urgently can enhance blood circulation and dispel cold pathogens.
2、Application of Ginger powder dryer
Ginger powder dryer has the advantages of simple equipment, low cost and energy saving. As a new thin-layer drying technology, it has attracted market interest and attention. Compared with drum drying, it can significantly reduce the drying temperature, and is suitable for drying pulp materials that cannot be dried by spray and need to be dried at a lower temperature, such as strawberry pulp, banana pulp, raspberry and Must.
Due to the fact that the drying material can be heated for as little as a few minutes, exposing the components in the material to a milder heating temperature during the drying process can reduce the loss of components in the material, and the product has good sensory quality. As an indirect drying process, the product does not come into direct contact with the heat transfer medium and there is no cross contamination; The requirements for the state of the dried materials are not high, which can concentrate juice and dry fruit and vegetable puree; Its processing water is recycled, and heat is mainly transmitted to the material through infrared radiation, improving energy utilization efficiency.
3、Ginger powder dryer system features:
1) Low energy consumption;
2) For dry liquid materials, there is no need to pre-concentrated or processing of gum for raw materials, etc.;
3) Continuous operation and production
4) Low water consumption;
5) Easy to clean;
6) Simple control and easy operation;
7) Due to the use of flexible drying and high product quality, it can maintain the original color and fragrance;
8) Operations under low temperature and normal pressure conditions, greatly reduces the oxidation of the product;
9) The product has a high loosening dump density, which reduces packaging and transportation costs.
4、Ginger powder dryer Application advantages:
Suitable for paste, mud-shaped liquid material, especially the drying effect of thermal material.
1. Compact equipment, small volume, high production efficiency, and continuous production.
2. Drying strength, low energy consumption, and high thermal efficiency.
3. Fast drying speed, short material staying time, and high drying quality.
4. Gentle and fast drying process, retain the original product effective ingredients, and have the same quality effect as frozen and dry. The drying speed and cost are only one tenth.
5、Ginger powder dryer Models & Specifications:

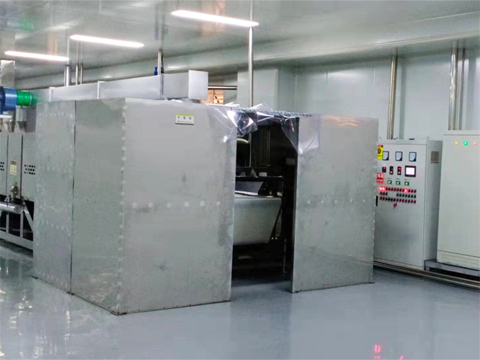

The WTFD Ginger powder dryer is mainly composed of feeding mechanism, outlet mechanism, special conveyor belt, sink, heating water tank, circulating water pump, feed metering pump, air atomized nozzle feeding device, rack, box, etc.
The refractive window dryer mainly has the following specifications and parameters:
Serial Number | model | Installed power(Kw) | Circulating water volume(L) | Configure heat(Kcal) | Overall dimensions (length × wide × Height (mm) | notes |
1 | WTFD-1650-4880 | 15 | 750 | 15×104 | 8690×2200× 2700 | Compressed air, Pressure 0.7kg/cm3 |
2 | WTFD-1650-9760 | 19.2 | 1500 | 30×104 | 13930×2200× 2700 | |
3 | WTFD-1650-14640 | 26.7 | 2250 | 45×104 | 19170×2200× 2700 | |
4 | WTFD-1650-19520 | 33 | 3000 | 60×104 | 24410×2200× 2700 | |
5 | WTFD-1650-24400 | 45 | 3750 | 75×104 | 29650×2200× 2700 |
