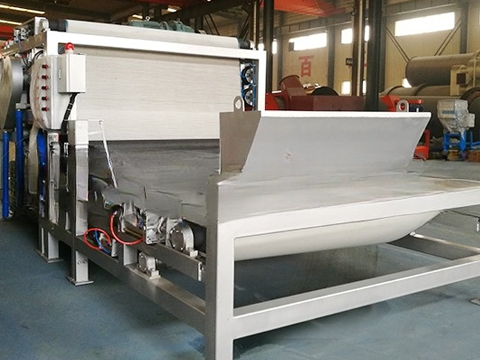

Traditional Chinese medicine residue dehydrator

Traditional Chinese medicine residue dehydrator

Production capacity: 30-120 (t/d)

Desert material: Chinese medicine residue, cassava residue, tea residue, beer residue, etc.

Production cycle: 7-15 days

Traditional Chinese medicine residue dehydrator, which is applicable to dehydration before drying, It can dehydrate the water content of Chinese medicine residue from 80 ~ 85% water-containing to meet customer's requirement, which greatly reduces the burden on the drug residue dryer. After dehydration, the drug residue can directly enter the drying equipment, which greatly reduces dry energy consumption, saving nearly half of production costs. The dehydration of Chinese medicine residue can not only avoid the secondary pollution caused by the medicine residue and its dripping, but also greatly reduce the use of cleaning water and reduce the pressure of sewage treatment stations. At the same time, the transportation cost is greatly reduced due to the compression of the drug residue.

Working principle of Traditional Chinese medicine residue dehydrator:

After the high wet Traditional Chinese medicine residue passes through the conveyor, it is transported to the material hopper of the dehydrator, through the spiral feeding device evenly on the filter belt, the filter belt runs with the equipment, the height of the ingredient board is flattened, so that the thickness of the material is completely evenly consistent; Then the upper and lower two tightened circular filters are clamped to the ingredients, driven by the driving roller, the roller in the dehydration area has been mechanically squeezed multiple times continuously to press out a large amount of water. Automatically adjust the squeezing pressure according to the characteristics of medicine residue to meet customers' requirements for medicine residue water content.

Technical parameters of medicine residue dehydration machine：
